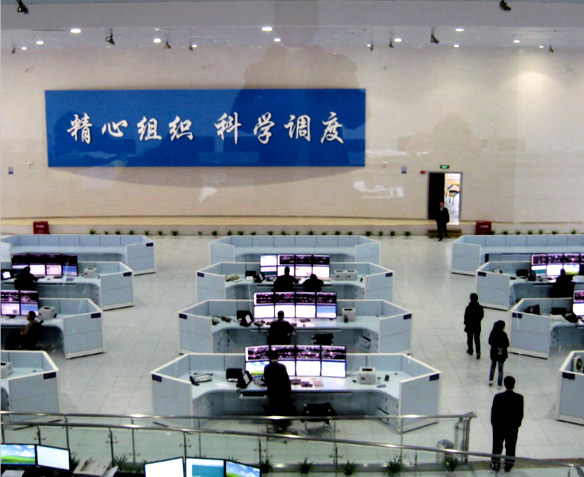

Centralized Traffic Control System (FZk-CTC)

The centralized traffic control system is the railway signaling technology equipment that conducts dispatching and command of the trains and shunting operations in the section under jurisdiction and achieves centralized control by signal equipment like interlocking, train control and section block. It is an important train operation equipment and command center for railway transportation.

FZk-CTC takes into full consideration the actual situation of China railway such as mixed operation of freight and passenger transportation and frequent shunting operations, and incorporated the control of shunting operations into CTC functions based on the principle of “distributed autonomy”, so as to achieve the remote and intelligent control of shunting routes and effectively solve the frequent shift of control rights between stations and traffic commanding and dispatching centers. FZk-CTC is also designed with the control function of shunting operations at unmanned stations, which fully exerts the advantages of CTC.

System Features

1+1 protection of key system units, and hot-standby switch without manual intervention in case of failure
Distributed autonomic functional configuration that can complete the key dispatching and command in case of central failure
Distributed WAN structure convenient for potential system expansion
Modularized software design, flexible to meet user needs
Standard graphical user interface conforming to ergonomic principles
Perfect failure diagnosis function, reducing system maintenance time
Interfaces with multiple systems like interlocking, train control, monitoring, TDMS and GSM-R
Highly reliable system design based on UNIX system, relational database and object oriented technology
Well-improved network protection function
Time synchronization within the whole system

The newly developed FZk-CTC3.0 with independent intellectual property ── a safe,
efficient and reliable all-round integrated system for railway train dispatching and command

Intelligently integrate multiple subsystems such as train operation, operation and maintenance, query, simulation and emergency based on the principle of “distributed autonomy”
Adopt a new generation of industrial autonomic machine, and add station servers, thus optimizing the system structure and improving the equipment performance
Cover more train operation positions at stations, make full use of redundant dual-network to realize two-way transmission of business applications, and increase train operation process supervision and security control, greatly improving the system stability and safety while extending the system connotation
Build train operation data platform to provide information maintenance for different positions
Enrich the station plans and change the way of route operation, to better adapt to the train operation commands of various types of stations

Advantages of FZk-CTC3.0 System

Comprehensive integration

It integrates multiple subsystems such as train operation, operation and maintenance, query, simulation and emergency, with system architecture optimized and system connotation extended, and big data platform is built to provide train operation information maintenance for different positions.
Higher safety

The system realizes all-round information check and integration, and incorporates the regulations, standards, business processes, etc. of train operations into equipment management, which fundamentally solves the problem of wrong route setting, and realizes the transformation from monitoring to prevention and control, human control to machine control and manual setting of prevention conditions to system automatic setting, so that the train operation is strictly organized by regulations and procedures, thus eliminating the potential safety hazards.
Better performance

Station servers are added.

The performance of key equipment such as station autonomic machine is significantly improved.

The station autonomic machine uses a more real-time customized operating system and special hardware, with a faster system response.
Better adaptiveness

The system is not only widely applied in high-speed railway, but also in normal-speed railway. Rich station plans and innovative route setting methods make it better adaptive to complex hubs and multi-directional stations.
Better stability

Redundant dual-network is fully exploited to realize two-way transmission of business applications.

The integrated maintenance platform (operation and maintenance subsystem) is equipped with an “online diagnostician”, which provides technical support for 7*24 uninterrupted system operation.

The query subsystem has separate functions from the core production system, making the later more focused on dispatching and command production.

The emergency subsystem can quickly restore system operation in case of core equipment failure or even disaster.

Intelligent CTC System

In view of the development needs of “intelligent railway”, it made breakthrough and further technological innovation based on the existing FZk-CTC3.0 software and hardware platform, and realized a deeper level of intelligentization of CTC system, improving the intelligent level of railway transportation as a whole.

Automatically adjust the train operation plan and assist the dispatchers in efficient emergency disposal
Automatic route setting optimization helps to improve the transport capacity of busy lines
More information display and linkage by integrated sharing of passenger ticket, power supply dispatching and disaster monitoring
Simulation training platform, integrating simulation, testing and practical training
Train operation plans are automatically loaded to help automatic driving of high-speed railway

Related Cases

Nanchang-Jingdezhen-Huangshan High-speed Railway

CASCO provided iLOCK interlocking and FZk-CTC3.0 centralized traffic control systems to fully ensure the opening and operation of the project.

Pearl River Delta Intercity Railway

The Pearl River Delta Intercity Railway includes Dongguan-Huizhou Intercity Railway and Foshan-Zhaoqing Intercity Railway, of which the former, applied CASCO’s C2+ATO signaling system.

Beijing-Shanghai High-speed Railway

Beijing-Shanghai High-speed Railway is one of the mainlines in the eight vertical and eight horizontal high-speed railway network in the national Medium and Long-Term Railway Network Plan.

Qinghai-Tibet Railway Signaling System Renovation

The Golmud-Lhasa section of Qinghai-Tibet Railway is equipped with CASCO’s CTC and CSM system, and the only one ITCS system in China.
CASCO upgraded the above existing systems and equipped the new stations with matching signaling systems.

Xi’an-Huyi City Railway

It is the first project in Shaanxi Province to operate municipal passenger trains on the existing railway, which will play a demonstration role in exploring the transformation of suburban railway.
CASCO provided TDCS3.0 and CTC3.0 systems and related server equipment.

Hefei-Hangzhou High-speed Railway

CASCO provided FZk-CTC3.0 system, which is a safe, efficient and reliable solution ensuring all-round integrated traffic command.

The railway of China Energy Investment

It is the second largest corridor for Eastward Transportation of Western Coal in China, and also the largest and longest local railway of CASCO.
CASCO provided full set of dispatching command system, including CTC/TDCS central system, remote dispatching console and CTC3.0/TDCS3.0 station subsystems.

Jinan-Zhengzhou High-speed Railway

CASCO provided CTC3.0 system. After the opening of Jinan-Zhengzhou High-speed Railway, it will be connected to Zhengzhou East Railway Station and interconnect with the existing Xuzhou-Lanzhou, Beijing-Guangzhou, Zhengzhou-Wanzhou, Zhengzhou-Fuyang High-speed Railways.

Zhengzhou-Chongqing High-speed Railway

The Hubei section adopts CASCO’s CTC3.0 system and CTC center system, while Hubei section and Chongqing section both adopt CASCO’s iLOCK computer interlocking system, which is the first C3 line of China Railway Wuhan and Chengdu Group to apply iLOCK system.

Huanggang-Huangmei High-Speed Railway

CASCO provided FZk-CTC3.0 systems for three new stations and two line stations, which were connected to the dispatching station of Intercity Station One of Wuhan Railway Bureau.

Yancheng-Nantong High-speed Railway

As an important part of the main "coastal channel" in the "eight verticals and eight horizontals" high-speed railway network, CASCO provided CTC3.0 and iLOCK systems for the project, and installed intelligent CTC system for the first time.

Signaling System Renovation for Guangzhou-Shenzhen Railway

CASCO provided FZk-CTC3.0 systems for all the stations and depots along the line.

Zhengzhou-Wanzhou High-speed Railway

CASCO provided FZk-CTC 3.0 and iLOCK systems for the project.

Datong-Qinhuangdao Railway

CASCO successfully upgraded the original CTC system of Datong-Qinhuangdao Railway with FZK-CTC3.0 system.

Haolebaoji–Ji’an Railway

Haolebaoji–Ji’an Railway is the longest heavy haul railway that was constructed and commissioned at one go in the world. CASCO provided FZk-CTC3.0 system with independent intellectual property rights for all the 132 stations.

Hong Kong Section of Guangzhou-Hong Kong High-speed Railway

CASCO provided FZk-CTC system of SIL2 safety level, together with iLOCK computer interlocking system and CSM-KA system.

Wuhan-Guangzhou Passenger Dedicated Line

Wuhan-Guangzhou PDL is the southern section of Beijing-Guangzhou PDL.
CASCO provided C3 standard CTC system.

CTC and TDCS Project in Taiyuan Bureau

CASCO provided FZk-CTC and TDCS 3.0 system.

Qingdao-Jinan Passenger Dedicated Line

CASCO provided various signaling system products including FZk-CTC, CSM-KA and KD1-ka.

Qinghai-Tibet Railway

Qinghai-Tibet Railway, known as the Heaven Road, is the symbolic project of western development strategy and one of the four projects in the new century.
CASCO provided FZk-CTC system and microcomputer monitoring systems.

Lanzhou-Xinjiang High-speed Railway

CASCO provided FZk-CTC and new generation of signaling monitoring system CSM-KA.

Harbin-Qiqihaer High-speed Railway

It is a key project in China’s 12th Five-year Plan, for which CASCO provided its CTC and iLOCK systems.

Lanzhou-Zhongchuan Airport Railway

It is an important part of Lanzhou-Zhangye Railway.
The whole line applied CASCO’s FZk-CTC and CSM-KA systems.

Nanning PDL Center

CASCO built 1 FZk-CTC system for Nanning railway dispatching station and helped the connection of all the CTC systems within, which realized separated operation of the dispatching systems of PDL and normal-speed lines in Nanning Railway Bureau.
CASCO was awarded the praise from Nanning Railway Bureau for the excellent performance in the project.

Addis Ababa-Djibouti Railway

CASCO provided CTC system for the whole line, including 4 CTC stations and 1 CTC center.

Xi’an Railway Center

As a key project of the 12th Five-year Plan, it utilized CASCO’s equipment at 3 CTC and CSM stations as well as 1 dispatching center, realizing successful application of CTC system in train overhaul system.

Zhengzhou Bureau New PDL Center

CASCO built a new set of CTC center system which could connect the CTC systems of PDL and intercity railways in Zhengzhou Bureau, thus realizing separate operation of dispatching system in PDL and normal-speed line.

Lanzhou New PDL Center

Lanzhou PDL center is the dispatching center with top level of informationization and most complete functions. It consists of the construction of new dispatching building and removal and renovation of existing dispatching systems.
CASCO provided CTC system and removed the equipment in the temporary machine room of Lanxin Railway to normal-speed machine room. It also added CTC/TDCS system servers and dispatching devices for normal-speed lines.

Baoji-Lanzhou Passenger Dedicated Line

CASCO provided FZk-CTC and CSM-KA systems and made it an example project with high standard, high quality and high level, as the benchmark of PDL construction in China railway.

Xi'an-Chengdu High-Speed Railway

It is an important part of "eight verticals and eight horizontals" railway network, as well as another key line for CASCO in western region.
CASCO provided FZk-CTC systems for a safe and successful operation.

Lanzhou New PDL Center

CASCO provided CTC center system and TDCS/CTC center system, including 5 CTC dispatching stations for high-speed railway, 8 CTC dispatching stations and 10 TDCS dispatching stations for normal-speed railway.

Nanchang PDL Center

CASCO provided one CTC center system for high-speed railway center and one CTC/TDCS center system for normal-speed railway, and completed the removal of normal-speed equipment room, PDL equipment room and dispatching center in one year.
